Tascam ML-4D-OUT-E

Description

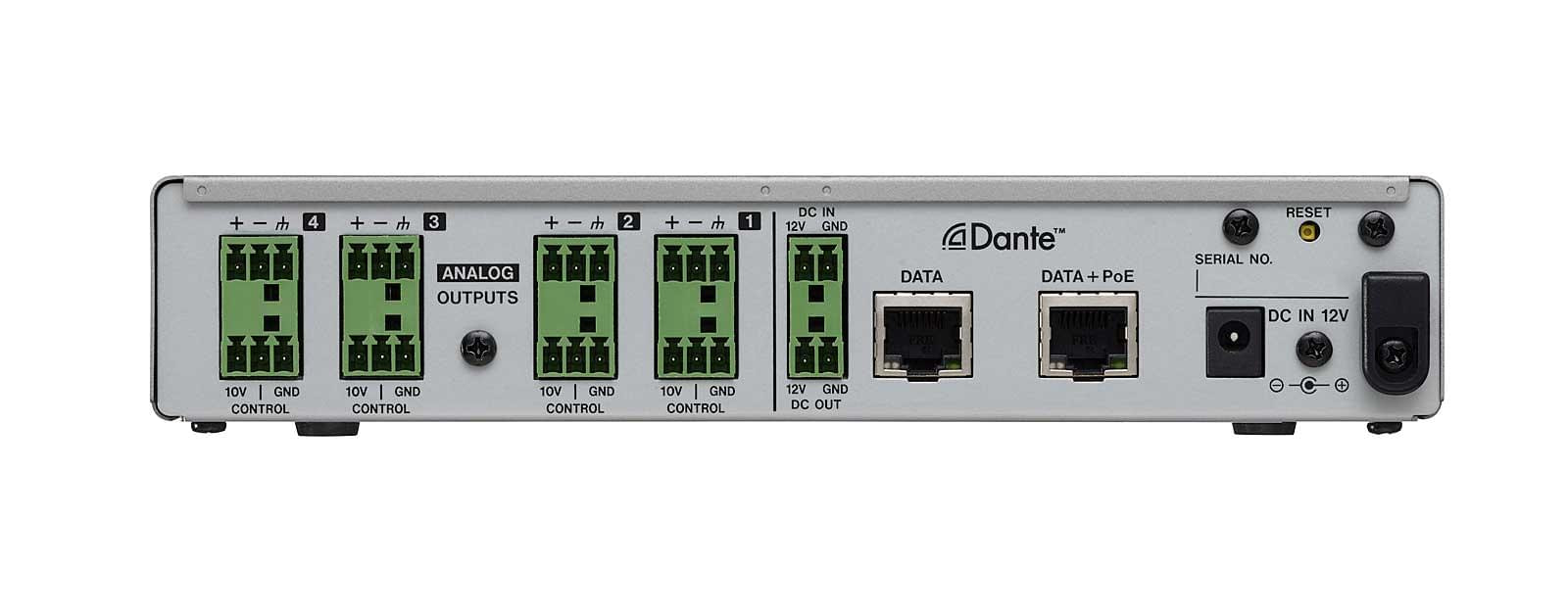

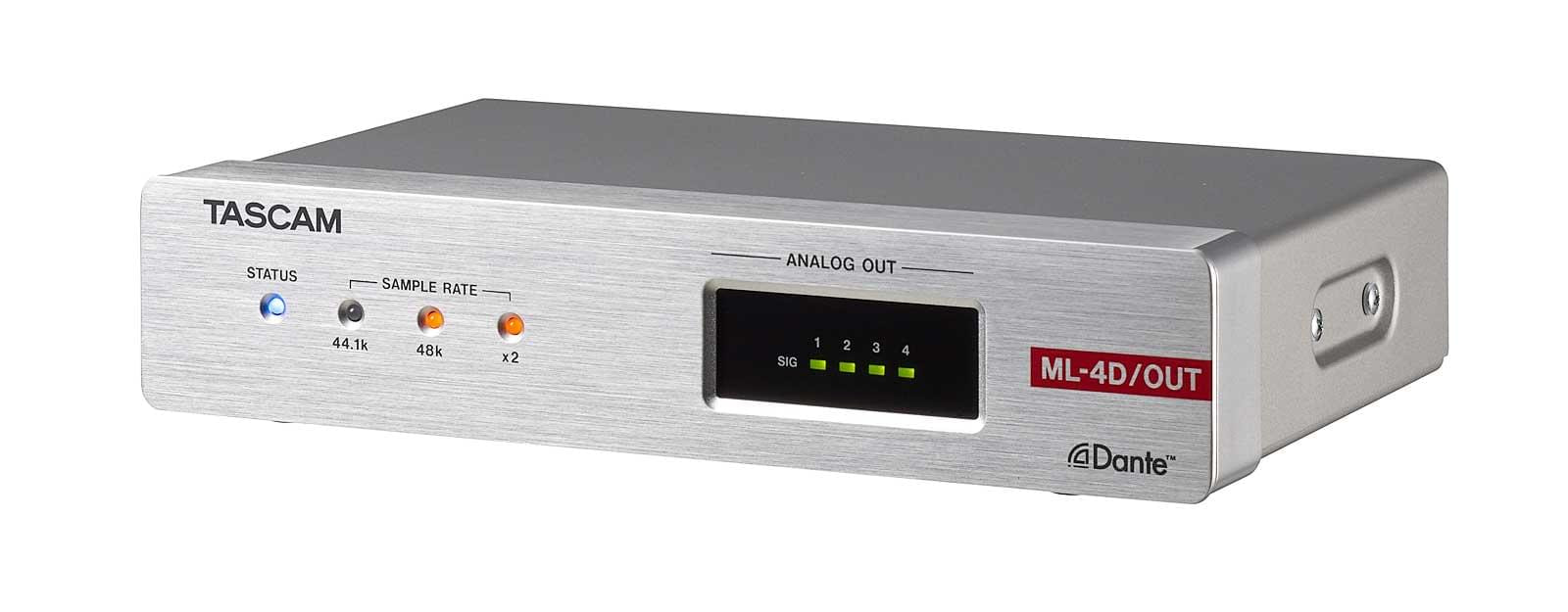

The ML-4D/OUT is an exquisite analogue output unit that converts four Dante input signals into four line output signals. In addition, it also supports four-channel Dante output as well, making it possible to use virtually any audio sources within an established Dante network. Available with Euroblock (ML-4D/OUT-E) or XLR (ML-4D/OUT-X) connectors for analogue outputs, this model can be used for a wide range of applications. The ML-4D/OUT is part of the Tascam Dante Compact Processor Series consisting of compact, half-rack size audio converters for Dante/AES67 networks. The models easily add additional mic/line or AES/EBU inputs/outputs to Dante audio networks in public facilities, broadcasting stations, recording studios or upmarket domestic environment and can be freely combined. A key advantage of the product range is the DSP processor built into each unit. By providing not only mixing functions and EQ but also dynamic processing, automatic level control, auto-ducking, routing and noise compensation, even small systems can fully perform without additional signal processing or mixing devices. From the input of microphone signals to the output of powered speakers or recording devices, the Dante Compact Processor Series can build up a complete small system on their own. Remote control is possible via two different software applications available for Mac, Windows, iOS and Android devices: Tascam DCP Connect for configuration and Tascam EZ Connect for end users, both of which are simple to use and included with the units. The ML-4D/OUT also offers the possibility to control its output levels via GPI. All models can be powered by PoE or an optional AC adapter. By using power daisy-chaining, two units mounted side-by-side in a rack can be powered by one AC adapter.
