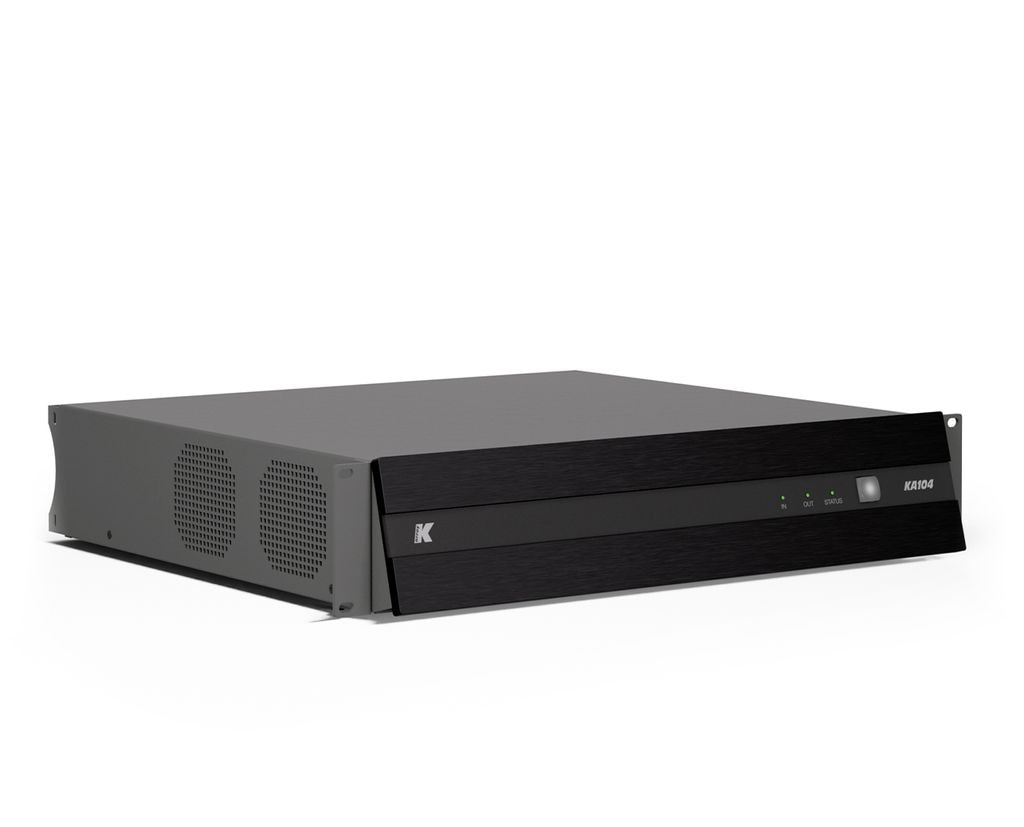

K-Array Kommander-KA104
4ch switching mode Class D Amplifier with DSP, 4x2500W@4Ω
Description
The Kommander-KA104 is a fully featured, 4x2500W@4Ω amplifier platform with DSP highly integrated into the K-array collection ecosystem. The Kommander-KA104 offers pristine sound and complete control over the connected loudspeakers, either as a stand alone driving unit and in conjunction with other K-array amplifiers in complex and demanding applications. The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing. K-framework3 is the managing and control software dedicated to professionals and operators looking for a powerful tool for loudspeakers system design and tuning of large a number of units over a wired LAN.
List price *
£6,576.00
Key features
- Output Power: 4 x 2500W @ 4Ω
- Impedance: minimum 4 Ω
- Frequency Response: 20 Hz - 20 kHz (±1 dB)

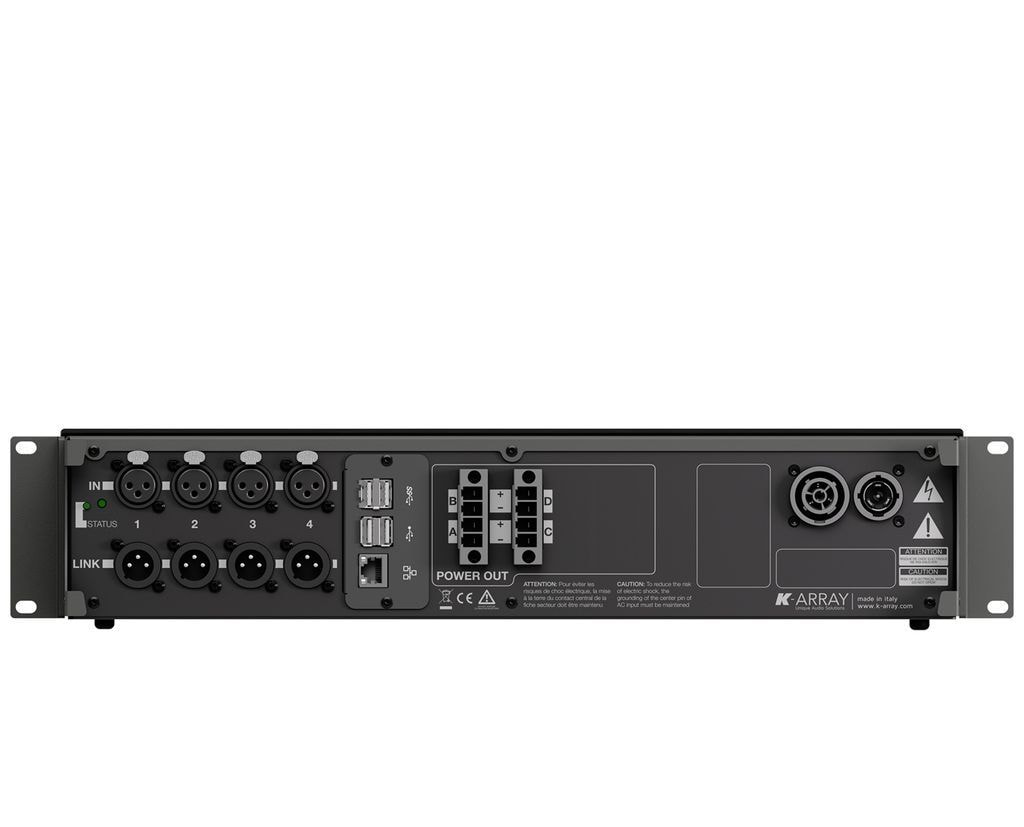

- Connections: Input: 4x XLR-F bal input, 4x XLR-M bal LINK output; Output: 2x PC 4/ 4-ST-7,62 speaker output; Remote connectivity: 1x Ethernet RJ45, 4x USB-A, Wi-Fi IEEE 802.11 b/g/n; Power: 1 x PowerCon TRUE IN, 1 x PowerCon TRUE Link
- Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
- Remote Control: Wi-Fi and Ethernet dedicated APP and Desktop software
- Protections: Thermal protection, output short circuit, RMS output current protection, high frequency protection, power limiter, clip limiter.
- MAIN Operating Range: 100-240V AC, 50-60 Hz with PFC
- Power Consumption: 600 W @ 4 Ω load, Pink noise, 1/8 rated power
- Material: Stainless Steel
- Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3,4 x 17 in)
- Weight: 8,15 kg (18lb)
