Ecler AURA-4H150

| Multichannel amplifier | Commercial Amplifiers |

Our Part No. 19779

Manufacturers Part No. AURA-4H150

Description

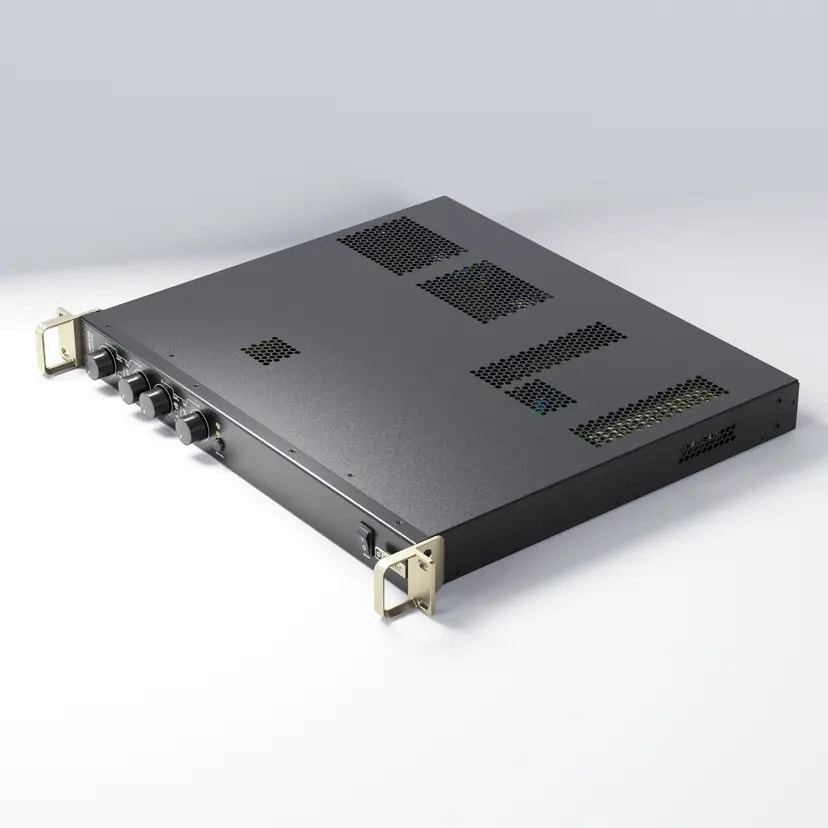

AURA-4H150 is a multichannel, 4x150 W RMS @ 70/100V, high efficiency amplifier (class D). AURA Series are built with the highest robustness for long lasting performances with special power supply circuitry designed for optimized electrical consumption and are 100% silent featuring convection cooling system. AURA Series also features the possibility of linking channels to the first input by selecting it on the rear panel, adjustable auto stand-by level, overload and thermal protection, PFC and anti-clipping system.

View spec sheet

List price *

£956.13

Key features

  1. 4 analogue audio inputs and 4 x150 WRMS @ 70/100V powered audio outputs

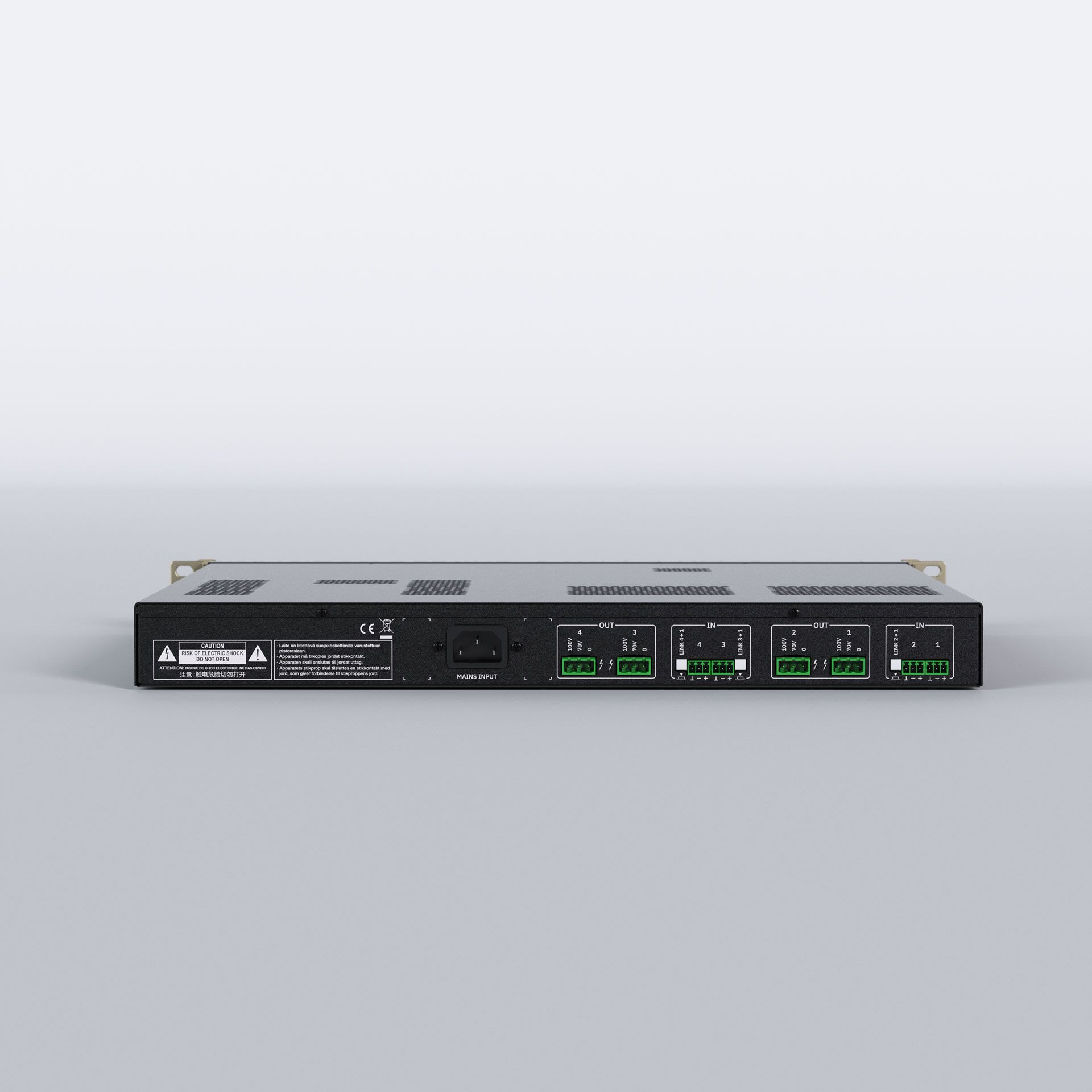

  2. Euroblock input and output connectors.
  3. Link to input 1 available.

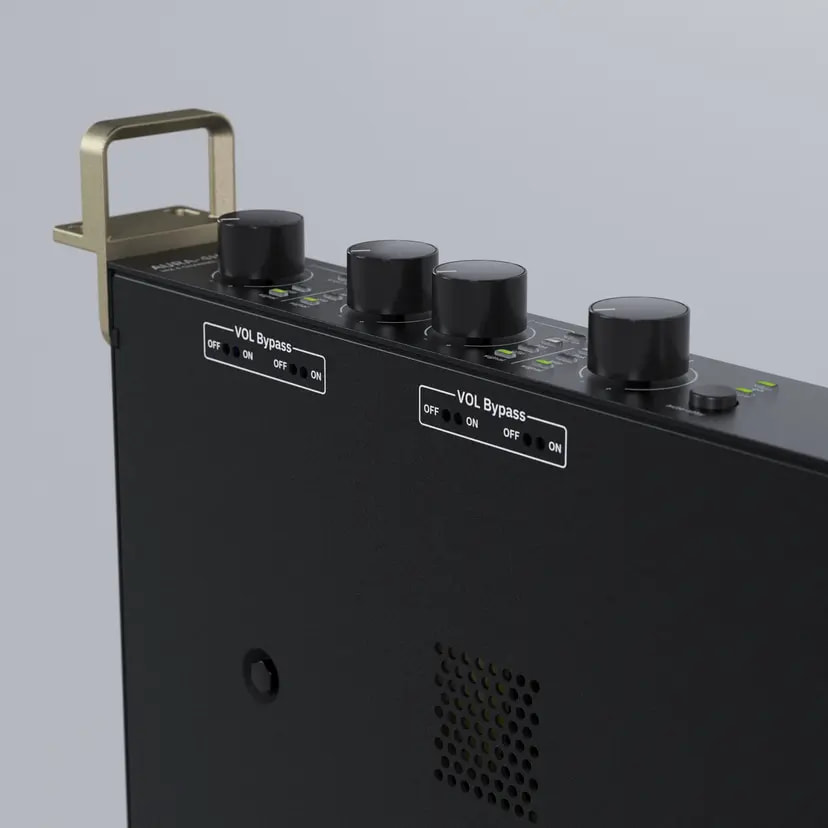

  4. Volume control knobs on front panel, that can be blocked via switches accessible from the bottom cover.
  5. High efficiency, auto stand-by function and convection cooling (fanless, 100% silent).
  6. Thermal protection.
  7. Overload protection.
  8. Anti-clip system.

Tech Specs

  1. Number of output channels: 4
  2. Max output power @ 100V: 150W
  3. Frequency response: 50Hz-20kHz (-3dB, 1W @ 68Ω)
  4. SNR (Signal-to-Noise Ratio): 100 dBA (from 20Hz - 20kHz)
  5. Amplification technology: Class D, Transformer isolated output
  6. Power supply: Universal, regulated SMPS with PFC
