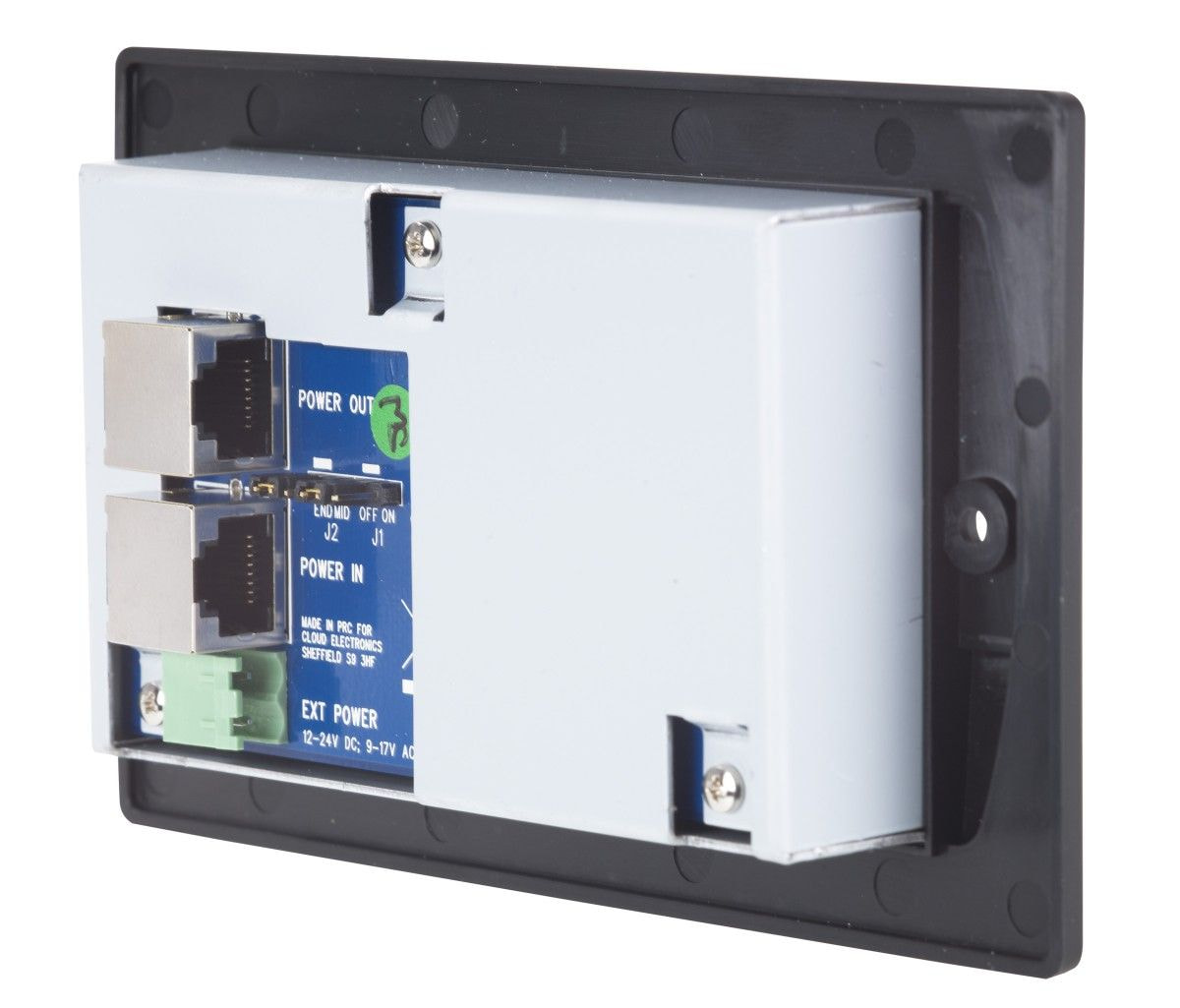

Cloud CDR-1FW

Flush Mount Remote for DCM-1 / DCM1e (White)

Description

The CDR-1F is a flush-mount remote control panel for use with the Cloud DCM-1 & DCM1e Digital Control Mixer, fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one or many of the DCM-1's zones, the CDR-1F provides the user and installer with localised control of a zone. A zone may have one CDR-1F, more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

View spec sheet

List price *

£135.00

Key features

  1. Available in black, white and silver: CDR-1FW (White) / CDR-1FB (Black) / CDR-1FS (Silver)
  2. Enables remote control of Cloud's DCM-1 Digital Control Mixer
  3. Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
  4. Can be interconnected using a wide choice of wiring topologies
  5. Backlit 2-row x 16 character dot matrix alphanumeric display
  6. User accessible functions: Source selection; Level control; Group enable/disable
  7. Engineer mode functions (password enabled): Local zone EQ adjustment
  8. Installer mode (Enabled by internal jumper): Zone assignment; Password setting; Display adjustment; Inactivity time (time for which display backlight remains lit after a button is pressed)
